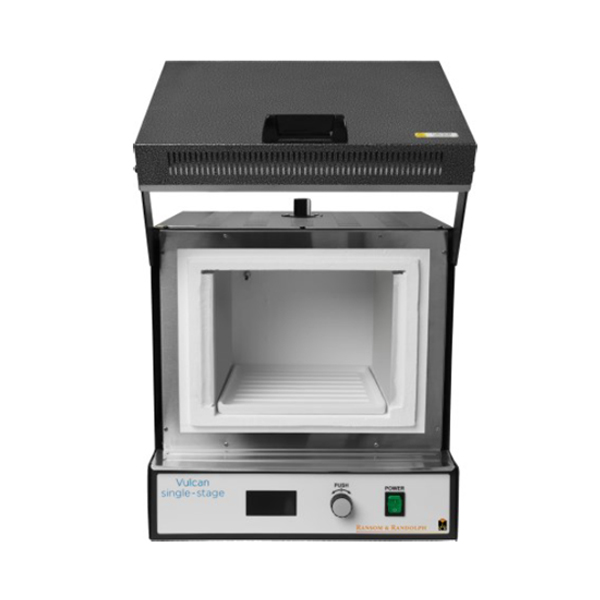

High Performance Hybrid Muffle Technology for Faster Heating and Cooling than Full Firebrick Exclusive to Vulcan® Benchtop Furnaces. Each Vulcan is constructed with a heavy gauge steel cabinet finished with a durable baked enamel coating. The vertical lift door directs heat away from the operator and is standard for safety and space conservation. Each furnace comes with a 1-Year Limited Warranty.
Features
• High performance hybrid muffle
• Longer life, more durable than fiber construction
• Faster heating and cooling than full firebrick
• Integrated door safety switch
• Durable stainless steel front panel
• Digital controller
− Single-Stage: digital temperature controller (programmable temperature, rate, hold time, alarm, °F/°C operation).
Technical Data :
Model S-550
Item Number : 5355730001
Description : S-550 200-240V
Volts : 200-240 V
Amps : 7.7-9.2 A
Watts : 1540-2215 W
Wide Operating Temperature Range : 77-2012°F (25-1100°C)
Ambient Storage Temperature Range : 41-104°F (5+40°C)
Programmable Heat Rate : 1-54°F/min (1-30°C/min)
Programmable Hold Time : Single-Stage: 0:00-60:00 hrs. / Three-Stage: 0:00-99:59 hrs.
Muffle Temperature Uniformity : ±15°F (±8°C) at steady state
Operating Temperature (Ambient) 41-104°F (5-40°C)
Electrical 50-60 Hz
